Description
| Product Model | |
|---|---|
| Model | Apple Cabin |
| Size | 5950*3000*2800mm |
| Area | 31.05㎡ (27㎡ inside) |

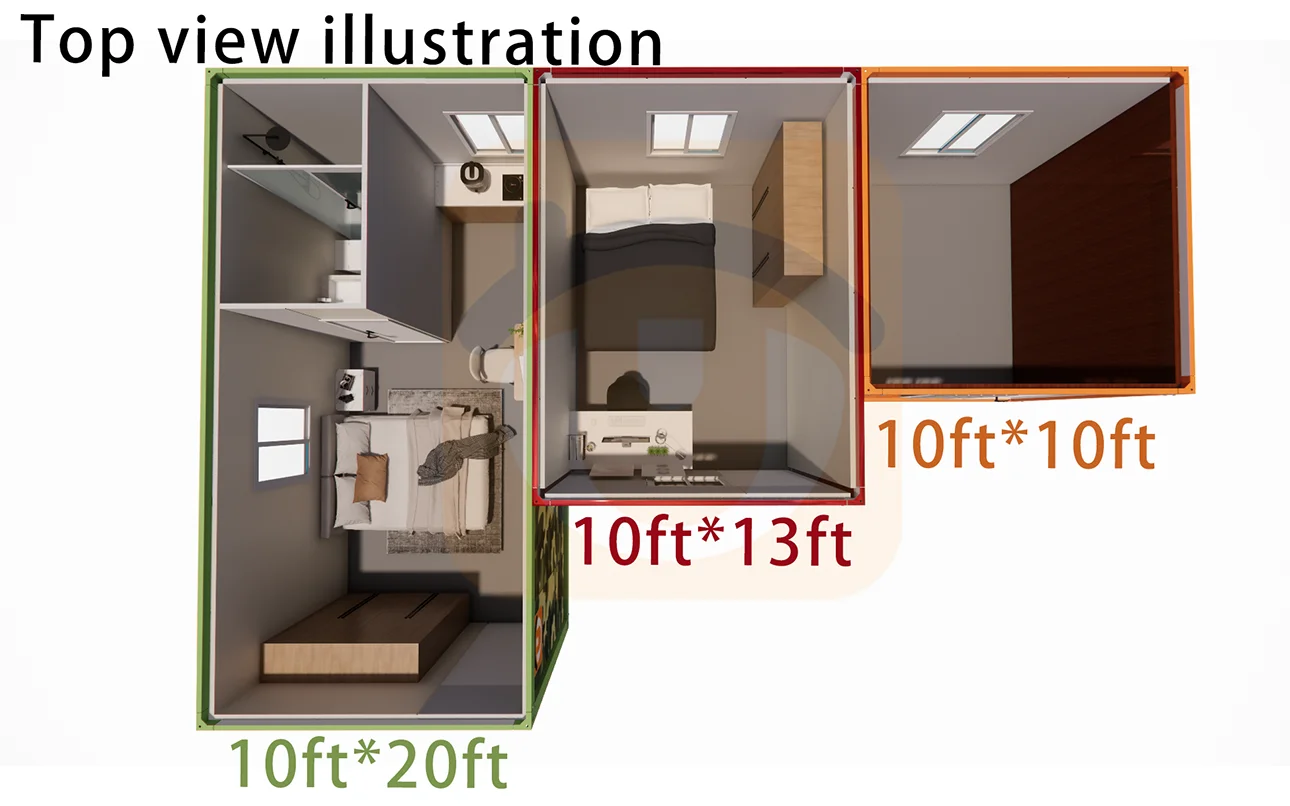

| Structure | 1 bedroom, 2 bathrooms |
| Power consumption | 16kw |
| Gross weight | 7T |
| Main structure | |
| Steel structure | 150*100*3.0 galvanized square tube, 100*100*3.0 galvanized square tube, 100*50*2.5 galvanized square tube, etc. are the main frame, including 14 thick hot-dip galvanized rings and foot support reinforcements |
| Rings | Foot supports and reinforcements |
| Shell shape | Shell decoration |
| Shell decoration | 2mm thick aluminum plate |

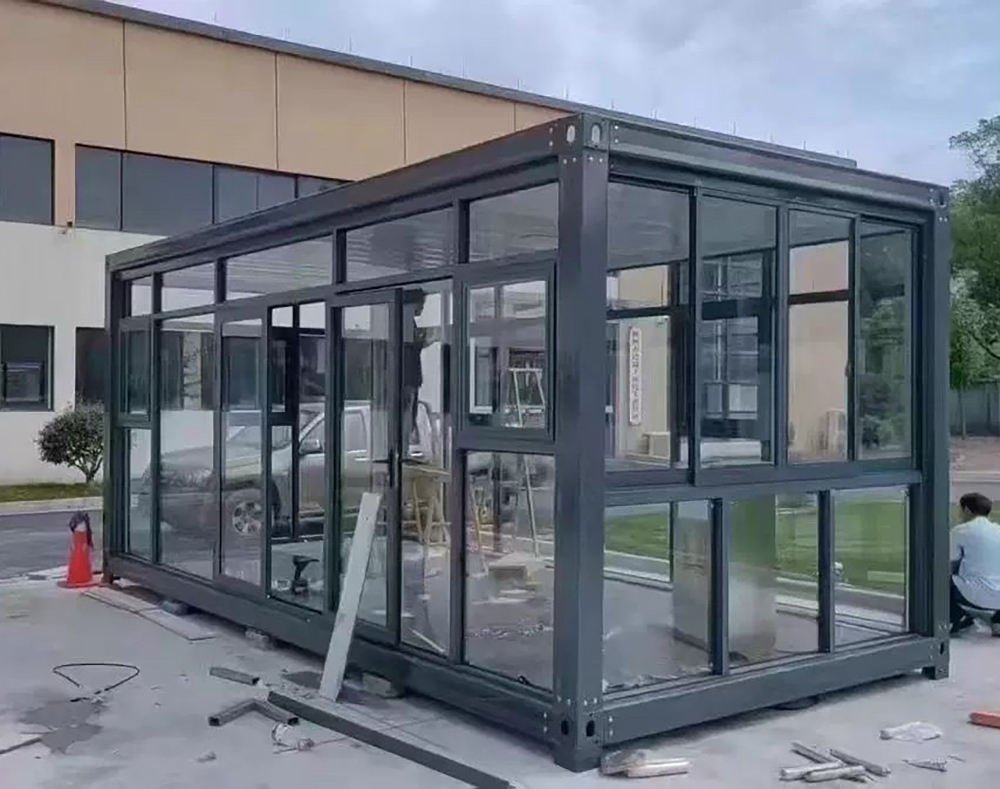

| Glass window frame | Glass curtain wall system |
| Glass curtain wall system | 60 series thermally-insulated aluminum, low-e tempered glass, 6+12+6mm, entrance door, door-to-window |
| Insulation layer | Polyurethane Invoice |
| Polyurethane Invoice | 10 cm thick polyurethane foam |

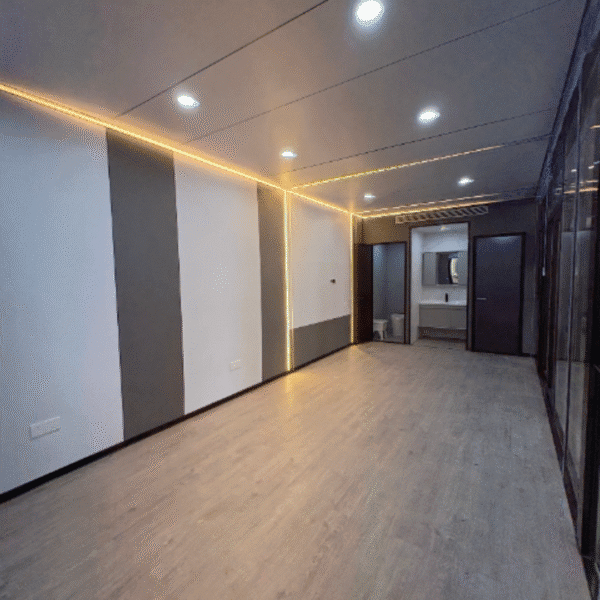

| Interior decoration | |
| Graphene floor heating | Graphene floor heating line |
| Ground System | 18mm thick cement fiber board, 4mm thick lock floor |
| Ceiling | OSB base, 9mm thick bamboo fiberboard ceiling finish |
| Interior wall finishes | Wall substrate: OSB; 9mm thick bamboo fiberboard veneer |
We can add more functions

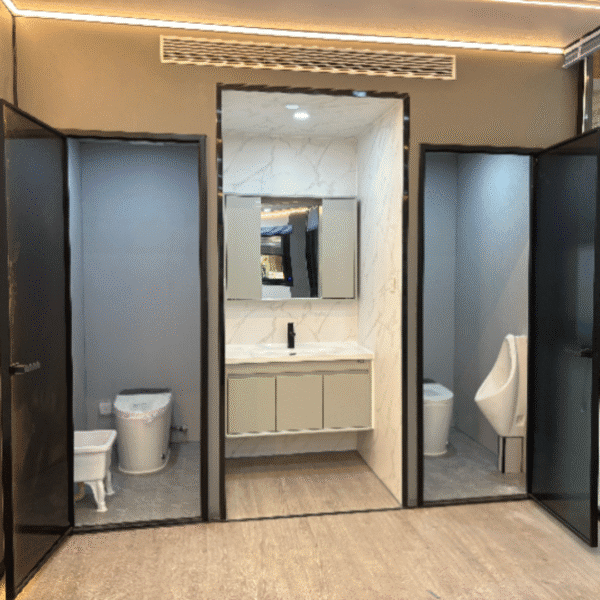

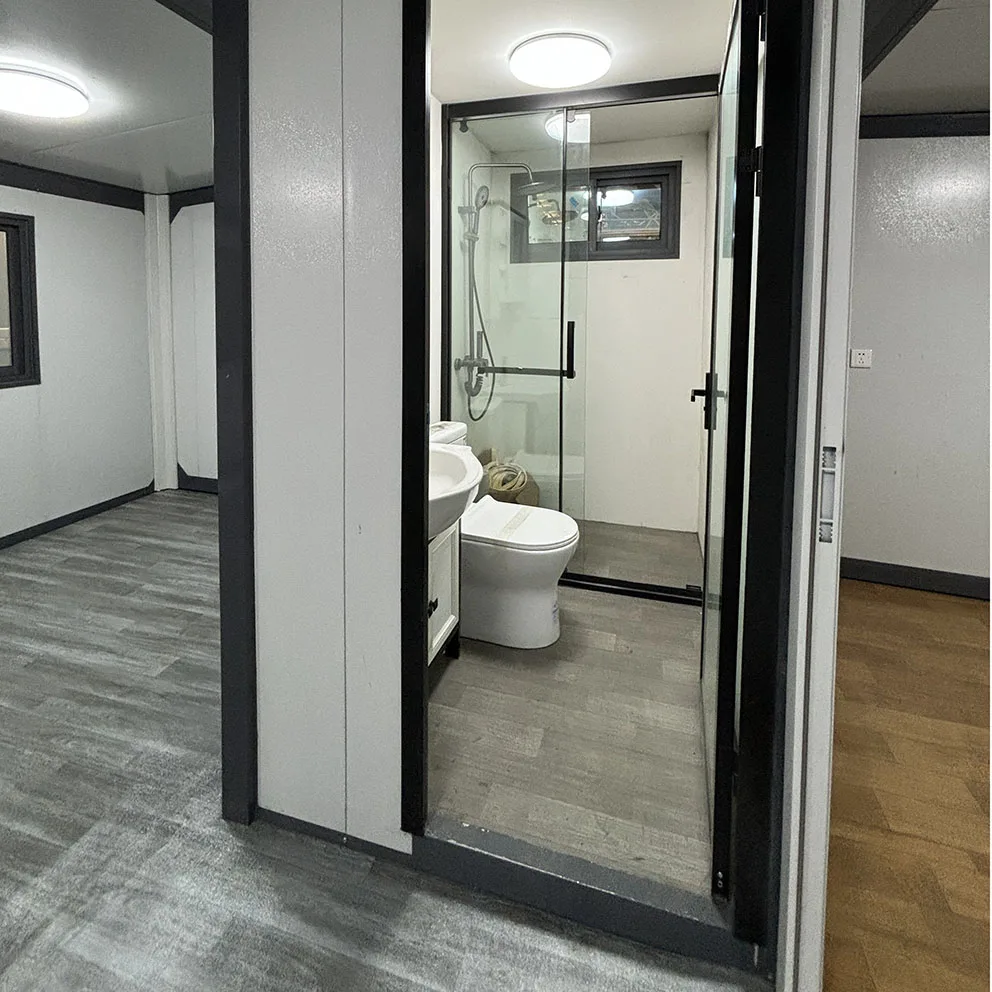

Dry-wet separated bathroom

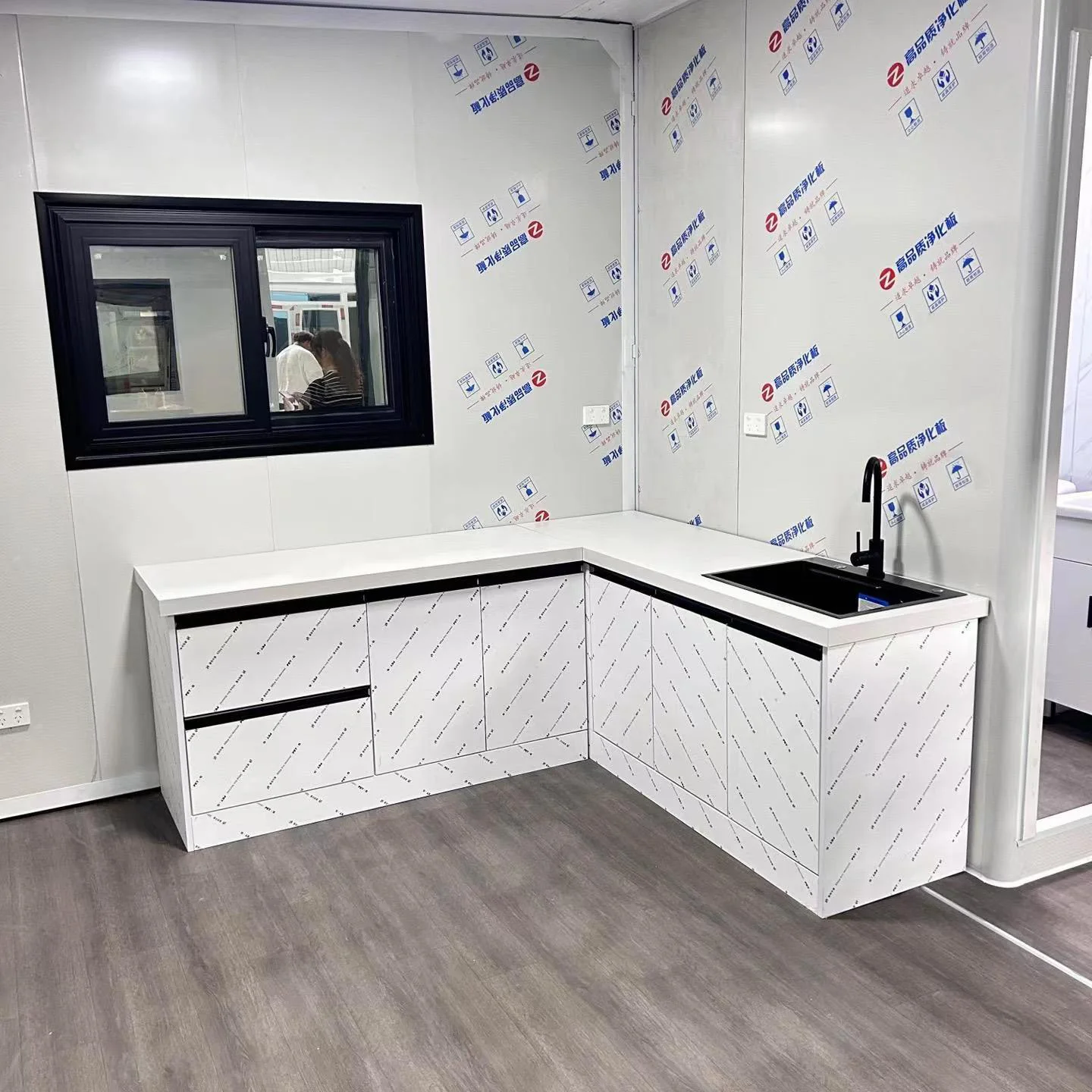

Kitchen cabinet

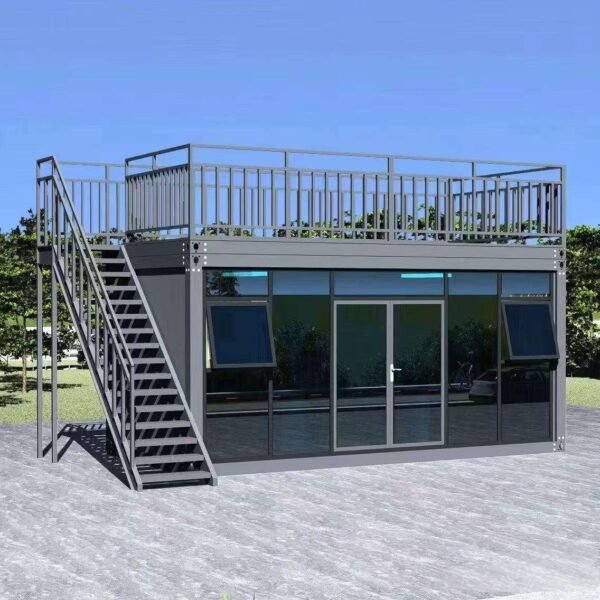

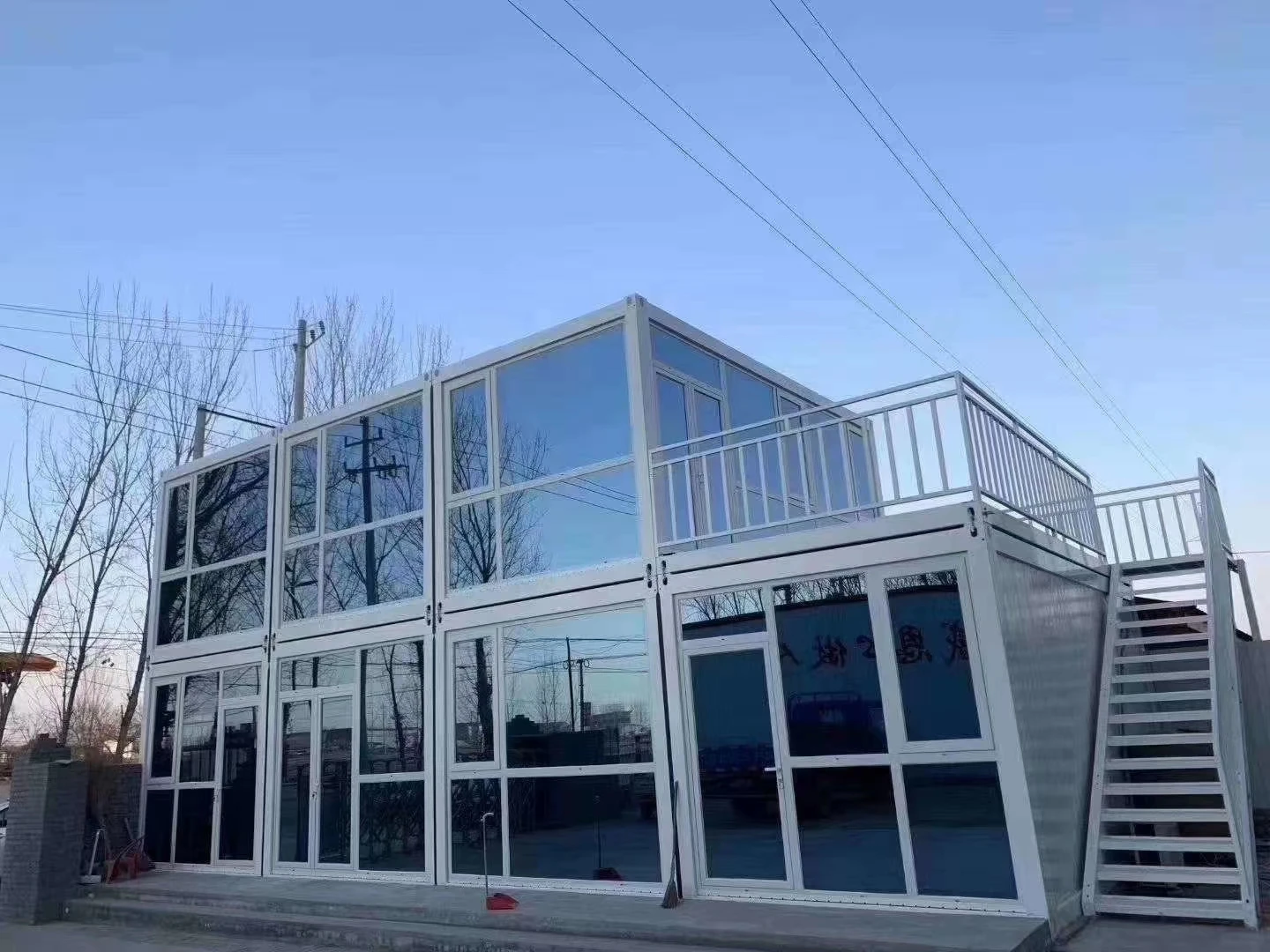

Staircase and Terrace

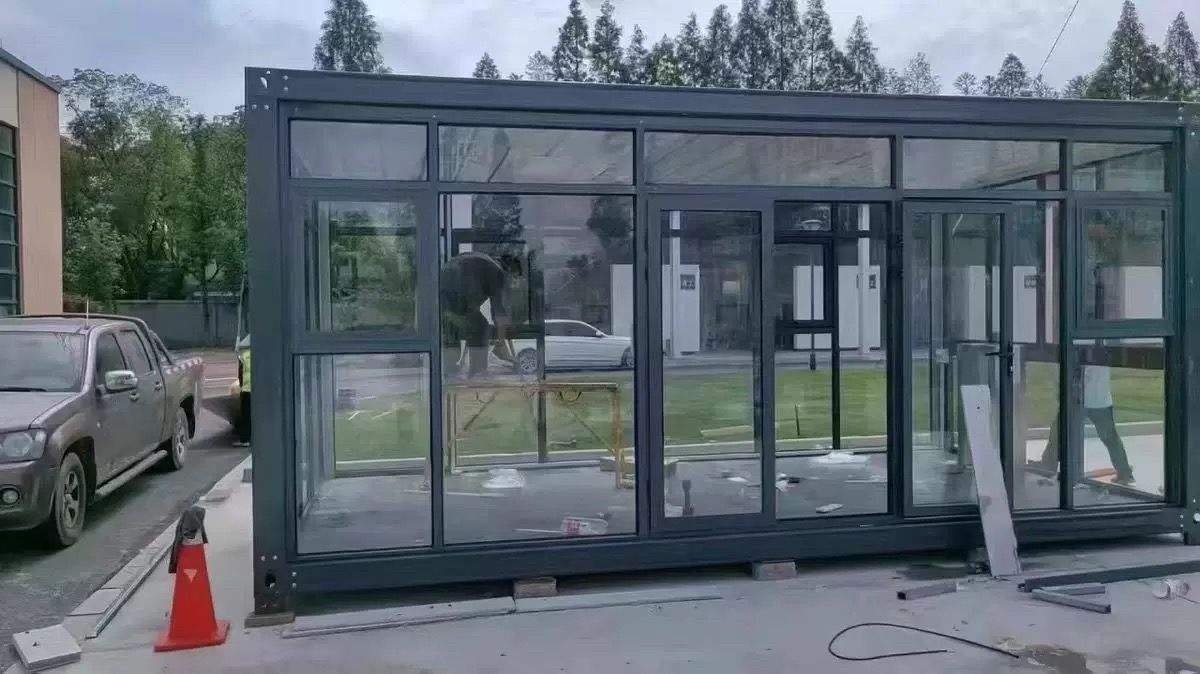

glass walls
